Monel 400 Forging OEM Products

Monel 400 is a deformable nickel-copper-based nickel alloy with excellent resistance to seawater corrosion and chemical corrosion, as well as strong resistance to chloride stress corrosion cracking. This alloy is one of the few materials capable of performing well in fluoride environments, demonstrating good oxidation resistance in hydrofluoric acid and fluorine gas media.



This versatile alloy is widely utilized in various applications, including valve and pump components, electronic parts, chemical processing equipment, gasoline and freshwater storage tanks, petroleum refining systems, propeller shafts, marine fixtures and fasteners, boiler feedwater heaters, and other heat exchangers.





Composition(%)	C	Si	Mn	Fe	S	Cu
Monel 400	≤0.3	≤0.5	≤2.0	≤2.0	≤0.024	28.0-34.0



Physical Properties
Specific Heat(J/kg.K)	20℃	427
Resistivity(μΩ.cm)		54.7
Thermal Conductivity(W/m.K)		21.8
Average thermal expansion coefficient(10-6/℃)	20-100℃	13.9
Melting Point(℃)		1300-1350



Mechanical Properties
YS(N/mm2)	≥195
TS(N/mm2)	≥485
EL(%)	≥35
HRB	-





The production of Monel 400 forging OEM products involves several steps to ensure high-quality, precision-engineered components:

1. Material Selection

High-quality Monel 400 billets or bars are selected, ensuring the chemical composition meets the required specifications (e.g., ASTM B164, AMS 4675).

2. Heating

The material is heated to a specific temperature (typically between 1100°C and 1200°C) to make it malleable for forging.

3. Forging

The heated material is shaped into the desired component using one of the following forging methods:

• Open Die Forging: Suitable for large or custom-shaped components.
• Closed Die Forging: Used for high-precision, complex shapes.
• Ring Rolling: For producing seamless rings.
• Forging enhances the material's mechanical properties by refining its grain structure.

4. Heat Treatment

The forged components are heat-treated to achieve the desired mechanical properties. For Monel 400, this typically involves annealing at 870-980°C followed by rapid cooling.

5. Machining

The forged parts are machined to achieve precise dimensions and surface finishes. CNC machining is often used for high accuracy.

6. Surface Treatment

Surface treatments such as pickling, polishing, or coating may be applied to improve corrosion resistance or meet specific customer requirements.

7. Inspection and Testing

The components undergo rigorous inspection and testing, including:

Dimensional Inspection: To ensure compliance with specifications.

Mechanical Testing: Tensile, hardness, and impact tests.

Non-Destructive Testing (NDT): Ultrasonic testing (UT), dye penetrant inspection (DPI), or radiographic testing (RT) to detect defects.

Chemical Analysis: To verify the alloy composition.

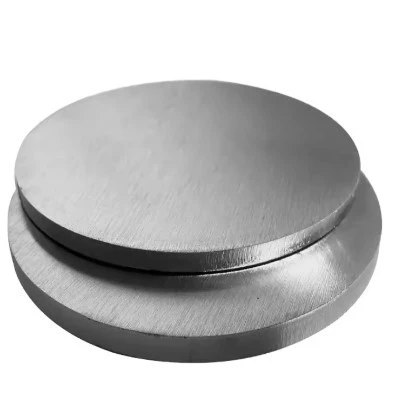

Monel 400 forging OEM products can be manufactured into a wide variety of shapes and components . Some of the most common forms include:

Rounds & Bars: Forged rods and round bars used for machining shafts, fasteners, and other components .

Rings: Seamless rolled rings for use in flanges, valves, and pressure vessels .

Flanges: Custom flanges of various types (Weld Neck, Slip-On, Blind) for piping systems in corrosive environments .

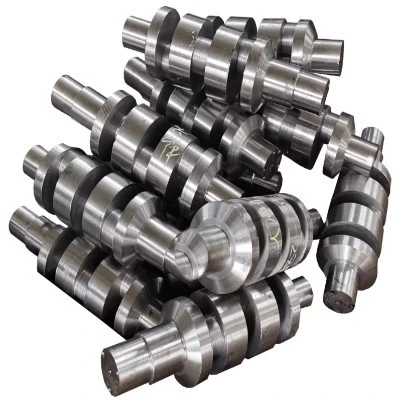

Shafts: Propeller shafts and pump shafts for marine and chemical processing applications .

Valve Components: Valve stems, bodies, and trim parts .

Tube Fittings & Fasteners: Custom fittings, bolts, and nuts for high-stress and corrosive environments









Monel 400 forged components are used in demanding environments where corrosion resistance and strength are critical. Common applications include:

• Marine Engineering: Propeller shafts, pump components, and seawater valves.
• Oil and Gas: Fasteners, valve stems, and downhole equipment.
• Chemical Processing: Heat exchangers, reactors, and piping systems.
• Aerospace: Turbine blades, engine components, and fuel systems.
• Power Generation: Pump shafts, fittings, and boiler feedwater heaters.





1. Delivery status: forged, cast, annealed, solid solution, aging state, etc;

2. Appearance status: black skin state, polished state, acid washed state;

3. Dimensional specifications: nominal size, tolerance range, fixed length, non fixed length, standard size;

4. Quality standards: GB, HB, GJB, AMS, GB/T, ASTM, ASME, JIS, DIN, EN, and others;

5. Product classification: Bar,Tube ,Strip, Wire,Flange,Plate,Ring,Round Cake,Forging ,casting Welding or drawing. We can produce according to your requirements

6. Order quantity

7. Delivery time





Q:What information should i confirm you when i send inquiry

A:Sometimes we need product specification like material standard or Grade, size, Qty, shipping port, Terms like FOB or CIF etc.



Q: How long of the delivery time?

A: Usually, the shipment can be delivery within 15-30days after the order confirmed.

Q: How about the payment items?

A: LC, T/T, PayPal, Western Union etc.



Q: Which country have you exported to?

A: Our main market is South America, Middle East, Africa and Europe. And have built long time relationship with Pakistan, US, Norway, Germany, Korea, Russia,Taiwan customers.And got continue orders from them every month.



Q: Can i visit your factory?

A: Sure! Welcome in any time.



Q: How about the MOQ?

A: Normally we dont have MOQ requirement, We always expect more opportunities with you. But for some special material or special size let's communicate the actual status.



Q: Can you support us in the applications?

A: It is our pleasure!



Q: Can you accept the inspection from a third party?

A: Yes. We have enough experience to cooperate with the inspection project.
