Product Description
4J32 Expansion Alloy, also known as Super Invar alloy (Super-Invar 32-5) is a low expansion iron nickel cobalt alloy. Its main uses are suitable for various instruments, instrument parts, thermal bimetallic passive layers, and resonant cavities that require dimensional stability. Its main characteristics are low expansion coefficient in the range of 20-100 ℃
Standard
|
Russia |
US |
UK |
Japan |
France |
|
-- |
Super-Invar32-5 |
SI |
Invar |
--- |
CHEMICAL COMPOSITION
|
C≤ |
Si≤ |
P≤ |
S≤ |
Cu |
Mn |
Ni |
Co |
Fe |
|
0.05 |
0.2 |
0.02 |
0.02 |
0.48-0.80 |
0.2-0.6 |
31.5-33.0 |
3.20-4.20 |
Bal. |
COEFFICIENT OF LINEAR EXPANSION
|
Heat Treatment of the Samples |
Average Coefficient of Linear Expansion ā/(10-6/℃) |
|
|
20-100℃ |
20-300℃ |
|
|
To be heat the semi-finshed products samples to 840±10°C, hold for 1 hour,and quench in the water.Machine the sample to finished samples. And heat at 315±10°C for 1H,furnace or air cool |
≤1.0 |
---- |
Linear Thermal Expansion
|
20-50°C |
20-100°C |
20-200°C |
20-300°C |
20-400°C |
20-500°C |
|
0.7 |
0.8 |
1.4 |
4.3 |
7.2 |
9.3 |
Shape and Size Available
|
Shape |
Size/mm |
Delivery Status |
|

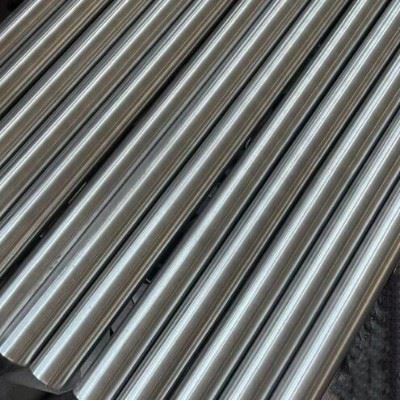

Bar |
5.0-8.0 |
Cold pull |
|
8.0-30.0 |
Hot-rolling |
|
|
30.0-180.0 |
Hot forging |
|
|
Plate |
3.5-30.0 |
Hot-rolling |
|
30.0-40.0 |
Hot forging |
|
|

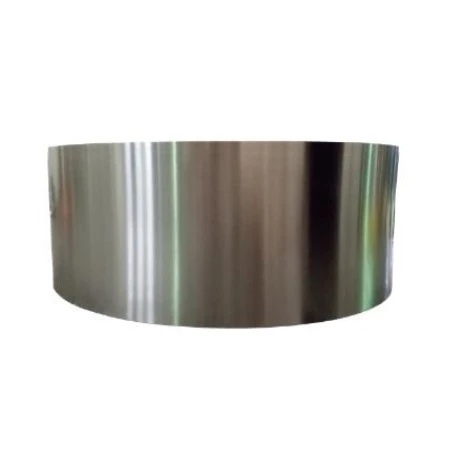

Strip |
0.2-3.5 |
Cold rolling |
|
Flat Wire |
0.5-5.0 |
Hot-rolling |
|

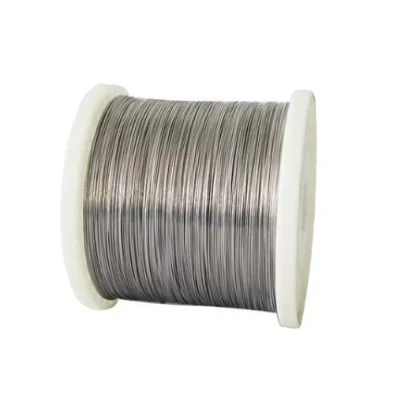

Round Wire |
0.1-5.0 |
Cold pull |
|
Capillary Tube |
OD:8.0-1.0, |
Cold pull |
|
Tube |
OD:120-8.0, |
Cold drawing |
4J32 Expansion Alloy in a variety of forms and dimensions.Below are most of the standard stock Small quantity accepted, if we have stocks, can delivery as small as 1 kilogram to your specification.
Rod / Wire
|
Rod (Dia.) mm |
Rod (Dia.) mm |
Rod (Dia.) mm |
Wire (Dia.) mm |
|
5 |
10 |
30 |
0.5 |
|
5.1 |
12 |
32 |
1 |
|
5.8 |
14 |
34 |
1.05 |
|
6 |
16 |
35 |
1.2 |
|
6.35 |
17 |
37 |
1.6 |
|
7 |
18 |
40 |
2 |
|
8 |
20 |
45 |
2.2 |
|
8.5 |
22 |
50 |
3 |
|
8.6 |
25 |
60 |
4 |
|
9 |
28 |
80 |
5 |
Plate / sheet / Strip / Coil
|
Coil /strip(T) mm |
Coil / strip(T) mm |
Sheet/Plate(T) mm |
Sheet/Plate(T) mm |
|
0.2*200 |
1.0*179.2 |
2.0*220 |
3.2*200 |
|
0.25*200 |
1.0*200 |
2.1*220 |
5.0*200 |
|
0.35*200 |
1.5*200 |
2.5*200 |
6.0*200 |
|
0.5*210 |
1.6*220 |
2.6*200 |
8.0*200 |
|
0.8*170 |
3.0*180 |
10.0*200 |
Pls confirm below information when you inquiry us
1. Delivery status: forged, cast, annealed, solid solution, aging state, etc;
2. Appearance status: black skin state, polished state, acid washed state;
3. Dimensional specifications: nominal size, tolerance range, fixed length, non fixed length, standard size;
4. Quality standards: GB, HB, GJB, AMS, GB/T, ASTM, ASME, JIS, DIN, EN, and others;
5. Product classification: Bar,Tube ,Strip, Wire,Flange,Plate,Ring,Round Cake,Forging ,casting Welding or drawing. We can produce according to your requirements
6. Order quantity
7. Delivery time
Our Advantages
Reliable Quality System
OEM/ ODM Services
No MOQ Required, More Opportunities
Excellent Pre-sales Service & After-sales Service
Fast Shipping & Best Price
FAQ
Q:What information should i confirm you when i send inquiry
A:Sometimes we need product specification like material standard or Grade, size, Qty, shipping port, Terms like FOB or CIF etc.
Q: How long of the delivery time?
A: Usually, the shipment can be delivery within 15-30days after the order confirmed.
Q: How about the payment items?
A: LC, T/T, PayPal, Western Union etc.
Q: Which country have you exported to?
A: Our main market is South America, Middle East, Africa and Europe. And have built long time relationship with Pakistan, US, Norway, Germany, Korea, Russia,Taiwan customers.And got continue orders from them every month.
Q: Can i visit your factory?
A: Sure! Welcome in any time.
Q: How about the MOQ?
A: Normally we dont have MOQ requirement, We always expect more opportunities with you. But for some special material or special size let's communicate the actual status.
Q: Can you support us in the applications?
A: It is our pleasure!
Q: Can you accept the inspection from a third party?
A: Yes. We have enough experience to cooperate with the inspection project.
