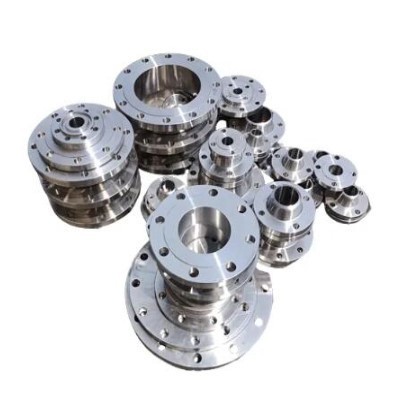

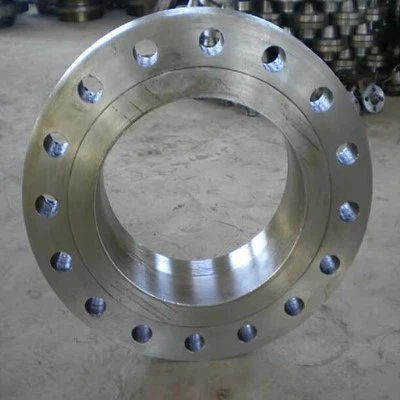

Monel K500 Flanges

Product Description

Monel K500 Flanges are one of the key OEM products offered by our company. In addition to providing standard flanges, we also customize flanges according to customer-specific drawings and requirements. Pipe flanges, along with their gaskets and fasteners, are collectively known as flange joints. These joints are critical components in engineering design, widely used across various applications. They play a vital role in piping systems, pipe fittings, valves, and essential equipment components such as manholes, sight glasses, and liquid level gauges. Furthermore, flange joints are extensively utilized in other fields, including industrial furnaces, thermal engineering, water supply and drainage, heating and ventilation, and automation systems.



Monel K500 flanges are specialized components made from Monel K500, a high-strength nickel-copper alloy known for its excellent mechanical properties and resistance to corrosion. These flanges are used in demanding environments where durability and reliability are critical. Below is an overview of Monel K500 flanges, including their properties, applications, and advantages.





Standards

• Monel K500 flanges are manufactured to meet international standards, such as:
• ASTM B564: Standard specification for nickel-copper alloy forgings.
• ASME B16.5: Covers pipe flanges and flanged fittings.
• EN, DIN, and JIS: Compliant with European, German, and Japanese standards.



Specification

Material	Alloy steel	Monel K500
Standard	ANSI	Class 150 steel flanges-Class 2500 steel flanges
	DIN	6Bar 10Bar 16Bar 25Bar 40Bar
	JIS	5K steel flanges-20K steel flanges
	UNI	6Bar 10Bar 16Bar 25Bar 40Bar
	EN	6Bar 10Bar 16Bar 25Bar 40Bar
TYPE	1.Welding neck steel flange 2.Slip on
	3.Blind flange 4.Long welding neck flange
	5.Lap joint flange 6.Socket welding
	7.Threaded flange 8.Flat flange
Surface	Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized
Connection	Welding, Threaded
Technical	Forged, Casting
Size	DN 25 DN 32 DN 40 DN 50 DN 65 DN 80 DN 100 DN 150 DN 250
Heat Treatment	Normalizing, Annealing, Quenching Tempering
Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.



Composition

• Monel K500 is a precipitation-hardened alloy primarily composed of:
• Nickel (Ni): ~63% (provides corrosion resistance and strength)
• Copper (Cu): ~27-33% (enhances machinability and thermal conductivity)
• Aluminum (Al): ~2.3-3.15% (contributes to precipitation hardening)
• Titanium (Ti): ~0.35-0.85% (further strengthens the alloy through heat treatment)



Properties

Monel K500 flanges exhibit the following key properties:

• High Strength: Offers excellent tensile and yield strength, especially after heat treatment.
• Corrosion Resistance: Resists corrosion in seawater, acidic, and alkaline environments, making it ideal for marine and chemical applications.
• Wear Resistance: Maintains performance under high-stress and abrasive conditions.
• Thermal Stability: Performs well in both high and low-temperature environments.
• Non-Magnetic: Suitable for applications requiring non-magnetic materials.
• Machinability: Can be machined to precise tolerances, though it requires specialized tools due to its hardness.



Advantages

• Longevity: Exceptional service life in harsh environments.
• Versatility: Suitable for a wide range of temperatures and pressures.
• Low Maintenance: Resists fouling and degradation, reducing downtime.
• Reliability: Consistent performance under extreme conditions.



Types of Flanges

Monel K500 flanges are available in various types, including:

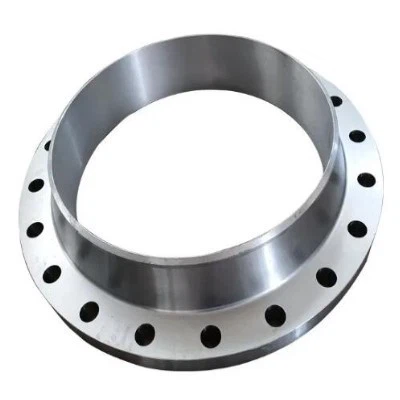

• Weld Neck Flanges: Designed for high-pressure applications.
• Slip-On Flanges: Easy to install and suitable for low-pressure systems.
• Blind Flanges: Used to seal the ends of pipes or vessels.
• Threaded Flanges: Ideal for low-pressure, non-critical applications.
• Socket Weld Flanges: Used for small-diameter, high-pressure piping.



Maintenance and Installation

• Proper Sealing: Use compatible gaskets and seals to prevent leaks.
• Regular Inspection: Check for signs of wear, corrosion, or deformation.
• Correct Torque: Follow manufacturer guidelines for bolt tightening to avoid flange damage.



Test Equipment

Applications

Monel K500 flanges are used in industries and applications where corrosion resistance and strength are paramount, such as:

Marine Engineering: Offshore platforms, shipbuilding, and submarine components.

Oil and Gas: Flanges for pipelines, valves, and pumps in corrosive environments.

Chemical Processing: Equipment exposed to acids, alkalis, and other aggressive chemicals.

Aerospace: High-stress components in aircraft and spacecraft.

Power Generation: Flanges in turbines and heat exchangers.



Pls confirm below information when you inquiry us

1. Delivery status: forged, cast, annealed, solid solution, aging state, etc;

2. Appearance status: black skin state, polished state, acid washed state;

3. Dimensional specifications: nominal size, tolerance range, fixed length, non fixed length, standard size;

4. Quality standards: GB, HB, GJB, AMS, GB/T, ASTM, ASME, JIS, DIN, EN, and others;

5. Product classification: Bar,Tube ,Strip, Wire,Flange,Plate,Ring,Round Cake,Forging ,casting Welding or drawing. We can produce according to your requirements

6. Order quantity

7. Delivery time



Our Advantages

Reliable Quality System

OEM/ ODM Services

No MOQ Required, More Opportunities

Excellent Pre-sales Service & After-sales Service

Fast Shipping & Best Price



FAQ

Q:What information should i confirm you when i send inquiry

A:Sometimes we need product specification like material standard or Grade, size, Qty, shipping port, Terms like FOB or CIF etc.

Q: How long of the delivery time?

A: Usually, the shipment can be delivery within 15-30days after the order confirmed.

Q: How about the payment items?

A: LC, T/T, PayPal, Western Union etc.

Q: Which country have you exported to?

A: Our main market is South America, Middle East, Africa and Europe. And have built long time relationship with Pakistan, US, Norway, Germany, Korea, Russia,Taiwan customers.And got continue orders from them every month.

Q: Can i visit your factory?

A: Sure! Welcome in any time.

Q: How about the MOQ?

A: Normally we dont have MOQ requirement, We always expect more opportunities with you. But for some special material or special size let's communicate the actual status.

Q: Can you support us in the applications?

A: It is our pleasure!

Q: Can you accept the inspection from a third party?

A: Yes. We have enough experience to cooperate with the inspection project.



Contact Us

Monel K500 flanges are a premium choice for industries requiring high-performance materials capable of withstanding corrosive and high-stress environments. Their combination of strength, corrosion resistance, and durability makes them indispensable in critical applications across marine, oil and gas, chemical, and aerospace sectors. However, their higher cost compared to standard materials is justified by their exceptional performance and longevity.
