Product Description

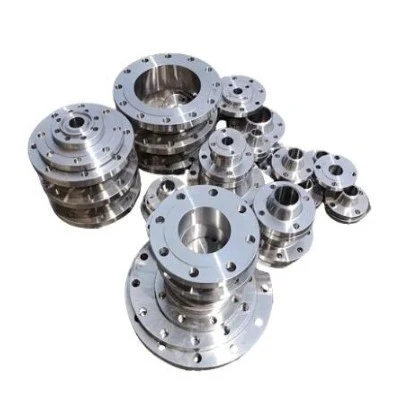

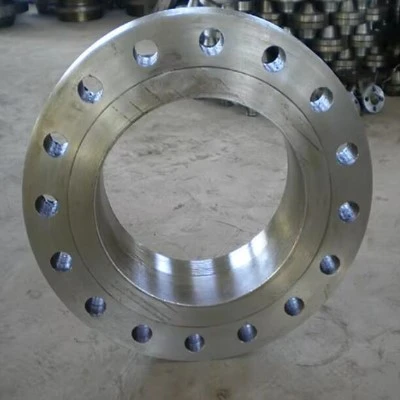

Alloy 400 Nickel alloy flange is a connection profile commonly used in oil and gas surface equipment to provide a means of assembling and disassembling components. The design and specification of a flange relates to the size and pressure capacity of the equipment to which it is fitted.
Alloy 400 Flanges Composition Chart
|
Ni |
Al |
S |
C |
Mn |
Fe |
Si |
Cu |
|
63.0 min |
0.50 max |
0.02 max |
0.3 max |
2.0 max |
1.0 - 2.5 |
0.5 max |
28.0 - 34.0 |
Equivalent material of Alloy 400 Flange
|
WERKSTOFF NR. |
UNS |
AFNOR |
GOST |
JIS |
EN |
BS |
|
2.436 |
N04400 |
NU-30M |
МНЖМц 28-2,5-1,5 |
NW 4400 |
NiCu30Fe |
NA 13 |
Alloy 400 Flanges Mechanical Analysis
|
Melting Point |
Density |
Tensile Strength |
Elongation |
Yield Strength (0.2%Offset) |
|
1350 °C (2460 °F) |
8.8 g/cm3 |
Psi - 80000 , MPa - 550 |
0.4 |
Psi - 35000 , MPa - 240 |
Product Specification
|
Standard |
Type |
Class |
Size |
|
ASME B16.5 |
WN/LWN/SO/Blind/Lap Joint |
150#-2500# |
1/2"-24"(Except Blind Flange 2500lb 1/2"-12") |
|
SW flange |
150#-1500# |
1/2"-3"(Except 1500# 1/2"-2 1/2") |
|
|
Threaded |
150#-900# |
1/2"-24" |
|
|
1500# 2500# |
1/2"-2 1/2" |
||
|
ASME B16.47 Series A |
WN/blind flange |
150# -900# |
22"-48"(Except 900# Size:26"-48") |
|
ASME B16.47 Series B |
WN/blind flange |
75#-300# |
26"-48" |
|
400# 600# 900# |
26"-36" |
||
|
DIN2527 |
Blind flange |
PN6-PN100 |
DN10-DN1000 |
|
DIN2543 |
SO flange |
PN16 |
DN10-DN1000 |
|
DIN2544 |
SO flange |
PN25 |
DN10-DN1000 |
|
DIN2545 |
SO flange |
PN40 |
DN10-DN500 |
|
DIN2565 |
Threaded flange with Neck |
PN6 |
DN6-DN200 |
|
DIN2566 |
Threaded flange with Neck |
PN16 |
DN6-DN150 |
|
DIN2567 |
Threaded flange with Neck |
PN25 PN40 |
DN6-DN150 |
|
DIN2568 |
Threaded flange with Neck |
PN64 |
DN10-DN150 |
|
DIN2569 |
Threaded flange with Neck |
PN100 |
DN10-DN150 |
|
EN1092-1:2002 |
Plate flange for welding/loose plate flange with weld-on plate collar or for lapped pipe end/Blind Flange/WN flange |
PN2.5-PN100 |
DN10-DN4000 |
|
JIS B2220 |
Welding flange, lap joint flange, threaded flange |
PN6-PN100 |
DN10-DN1500 |
|
BS4504 BS10 TableD/E |
Plate Flange for welding/WN flange/blank Flange |
PN6-PN100 |
DN10-DN1500 |
|
Other Products |
Anchor/swivel/girth/lap joint/reducing/orifice |
||
|
Spectacle blind/paddle blind/spacer ring/orifice plate/bleed ring |
|||
|

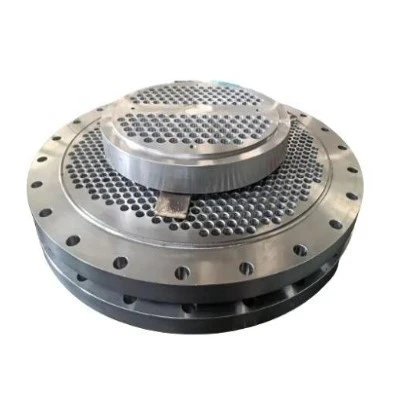

Special Products: rings/forgings/disc/shaft sleeves |
|||
|
Sealing Surface |
RF FF RTJ TF GF LF LM |
||
|
Flange Face Finish |
Stock finish/spiral serrated/concentric serrated/smooth finish(Ra 3.2 and 6.3 micrometers) |
||
|
125-250 AARH(it is called smooth finish) |
|||
|
250-500 AARH(it is called stock finish) |
|||
|
Coating |
Vanish, yellow paint, anti-rust oil, galvanizing etc |
||
|
Material Grade |
Nickel Alloy Steel |
ASTM/ASME B/SB564 UNS N02200(NICKEL 200), UNS N04400(MONEL 400), |
|
|
UNS N08825( INCOLOY 825), UNS N06600(INCONEL 600), |
|||
|
UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N10276(HASTELLOY C276), |
|||
|
ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20) |
|||
|
Copper Alloy |
ASTM/ASME B/SB151 UNS C70600(CuNi 90/10), C71500(CuNi 70/30) |
||
|
Stainless Steel |
ASTM/ASME A/SA182 F304,304L,304H,309H,310H,316,316H,316L,316LN, |
||
|
317,317L,321,321H,347,347H |
|||
|
Duplex and Super Duplex Steel |
ASTM/ASME A/SA182 F44,F45,F51,F53,F55,F60,F61 |
||
|
Carbon steel |
ASTM /ASME A/SA105(N) |
||
|
Low Temp Carbon Steel |
ASTM/ASME A/SA350 LF2 |
||
|
High Yield Carbon Steel |
ASTM/ASME A/SA694 F52, F56 F60, F65, F70 |
||
|
Alloy Steel |
ASTM/ASME A/SA182 GR F5,F9, F11,F12,F22,F91 |
||
|
Titanium |
ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7 |
||
Pls confirm below information when you inquiry us
1. Delivery status: forged, cast, annealed, solid solution, aging state, etc;
2. Appearance status: black skin state, polished state, acid washed state;
3. Dimensional specifications: nominal size, tolerance range, fixed length, non fixed length, standard size;
4. Quality standards: GB, HB, GJB, AMS, GB/T, ASTM, ASME, JIS, DIN, EN, and others;
5. Product classification: Bar,Tube ,Strip, Wire,Flange,Plate,Ring,Round Cake,Forging ,casting Welding or drawing. We can produce according to your requirements
6. Order quantity
7. Delivery time
