In the competitive landscape of specialty alloy manufacturing, securing an order from a discerning European client is no small feat. Recently, our company successfully fulfilled a significant Monel 400 bright bar order for a valued customer in the Czech Republic-a testament to our technical expertise, rigorous quality control, and unwavering commitment to excellence.
Successful delivery of Monel 400 (UNS N04400) bright bars for a Czech customer. Our team solved manufacturing difficulties including surface micro‑cracks and precision‑machining risks via 100% PT dye penetrant non‑destructive testing and optimized grinding process. The Czech client praised our stable quality and complete inspection documentation.
Product Overview: Monel 400 Bright Bar
UNS N04400 (Monel 400 / 2.4360)
Monel 400 (UNS N04400 / Werkstoff 2.4360) is a nickel-copper alloy renowned for its outstanding corrosion resistance, high strength, and excellent toughness across demanding environments. With a typical composition of approximately 63–67% nickel and 28–34% copper, this alloy delivers exceptional performance in marine engineering, chemical processing, oil and gas, and aerospace applications. Our Monel 400 bright bars are manufactured to ASTM B164 standards, featuring precision-ground surfaces with roughness as low as Ra ≤ 0.8μm and tight dimensional tolerances (h8–h9).
Customer Requirements And Key Production Challenges

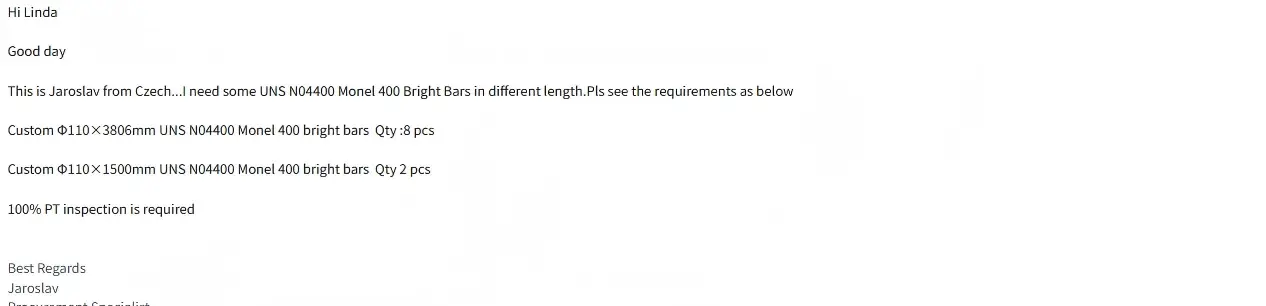

Customer Requirements
Key Production Challenges
Monel 400 is a typical solid‑solution nickel‑copper alloy with high ductility and stickiness during machining. Several tough problems had to be solved throughout the whole manufacturing process:
Surface micro‑defects risk：Hot forging and turning processes are likely to produce tiny surface cracks, laps and folding defects. Even invisible micro‑cracks on bright bars may cause severe failures under chloride‑rich corrosive working conditions.
Precision machining difficulty：Monel 400 material tends to built‑up edge during cutting. It is challenging to keep stable surface finish and tight dimensional tolerances for bright finished bars.
Strict non‑destructive inspection requirement：The Czech buyer required full‑range surface defect detection for each bar. Ordinary visual checking cannot identify micro surface flaws.
Consistent material performance：Homogeneous chemical composition and stable mechanical property across the whole bar length must be guaranteed to meet European end‑user standards.
Pls view our product link Monel 400 Round Bar for more details
Our Customized Solutions
To overcome above‑mentioned difficulties, our quality and production team carried out targeted process optimization:
Dye‑Penetrant Testing (PT / Liquid Penetrant Inspection) Every finished bright bar undergoes 100% PT non‑destructive inspection. As shown in our production photos, red penetrant liquid is applied to the bar surface. After cleaning, white developer is sprayed. Any surface‑breaking cracks, laps or porosity will be clearly displayed, so we can completely eliminate defective products.
Optimized turning & grinding process We adopted special cutting parameters and tool solutions to reduce tool wear and material adhesion, ensuring smooth, scratch‑free bright surface and precise diameter tolerance.
Full‑process material traceability Raw material chemical composition test, intermediate mechanical property sampling and final batch certification are performed. Each lot is supplied with complete inspection documents.
Final dimensional & surface re‑check before shipment Finished bars are re‑measured and visually reviewed prior to packing, to make sure goods are fully compliant with customer drawings.
After receiving and inspecting the Monel 400 bright bars, our Czech customer gave highly positive comments.
This project proves our capability to supply high‑quality Monel 400 bright bars for European industrial clients. We can provide Monel400 bars, pipes, sheets and forgings with customized sizes and full NDT inspection including PT, UT as required.
FAQ
Q1: What material grade is this batch of bright bars for the Czech customer?
A1: It is UNS N04400 (Monel 400 / W.Nr.2.4360) nickel‑copper alloy, fully produced and inspected in accordance with ASTM B164 standard. The heat number J0‑8721 is clearly marked on each bar for complete material traceability.
Q2: What are the exact dimensions of this Monel 400 order?
A2: Diameter Φ110 mm, custom fixed‑length 3806 mm. This is a non‑standard cut length rather than common stock size. Extra‑straightness control and precision saw‑cutting are required for such long bars.
Q3: Why does the Czech client require 100% PT dye‑penetrant inspection?
A3: Monel 400 work‑pieces are mostly used in corrosive‑resistant equipment for chemical and marine industries. Even tiny surface micro‑cracks, laps or folding defects may cause component failure under chloride‑containing working environments. 100% Dye‑Penetrant Testing (PT) can detect all surface‑breaking flaws and guarantee zero defective bars for subsequent CNC machining.
Q4: What major manufacturing difficulties did you encounter in this project?
A4:
Monel 400 nickel‑copper alloy has high viscosity when being machined, easy to cause tool sticking and poor surface finish.
The 3806‑mm extra‑long bar is prone to bending, making it difficult to meet strict straightness requirements.
Micro surface defects may be generated in forging and turning processes, which must be fully screened out via non‑destructive testing.
Custom fixed‑length cutting needs tight length tolerance, cannot adopt conventional sawing parameters.
Q5: How did your factory solve these production challenges?
- Optimized turning, grinding and straightening process parameters, adopted suitable cutting tools to obtain scratch‑free bright surface and control bar straightness.
- Implemented full‑range 100% PT penetrant inspection for every finished bar.
- Strictly controlled cutting tolerance to ensure each piece reaches exact 3806 mm length.
- Carried out multi‑point dimension re‑inspection and batch property testing, and provided complete MTC mill test certificates and inspection documents.
Q6: What marking requirement did the European buyer specify?
A6: Each finished bright bar must be permanently marked with grade UNS N04400, heat number, dimension and batch weight, which helps the customer to classify, store and trace materials conveniently in their warehouse.
Q7: What certifications and inspection reports can you provide for Monel 400 bars?
A7: We can supply Mill Test Certificate (MTC), PT penetrant inspection report, dimensional inspection sheet, chemical composition & mechanical property test records as requested by EU customers.
Q8: Can you produce custom‑size Monel 400 bright bars for other European clients?
A8: Yes. We are capable of manufacturing Monel 400 round bars with customized diameter, non‑standard fixed length, bright‑finished surface, and can arrange PT, UT and other NDT inspections on demand.
Q9: Can I request samples before placing a bulk order?
A: Absolutely. We offer sample quantities for customer evaluation. Please let us know your required specifications (diameter, wall thickness, length, and surface condition), and we will arrange shipment promptly. For new customer we need you pay for the sample costs, as old customer sample costs are typically credited against your next bulk order.
Q10: What is the Minimum Order Quantity (MOQ)?
A: Normally MOQ is 200kg, We always expect more opportunities with you. But for some special material or special size let's communicate the actual status.
Q11: What is your lead time?
A: For standard sizes in stock, we ship within 10-15 working days. For custom sizes or normalized heat treatment, lead time is typically 30-40 working days (depending on specifications and quantity). We always provide a clear delivery schedule before order confirmation and strictly adhere to it.
Q12: What payment terms do you accept?
A: We accept T/T, L/C, and other common methods. For new customers, we usually require 50% deposit and 50% balance before shipment. Flexible terms can be negotiated for long-term partners
Q13: What if I find quality issues after receiving the goods?
A: We provide a 100% quality guarantee. If any non-conformity is found, please provide photos and test data within 7 working days of receipt. We will respond within 48 hours and agree on replacement, return, or compensation terms.
