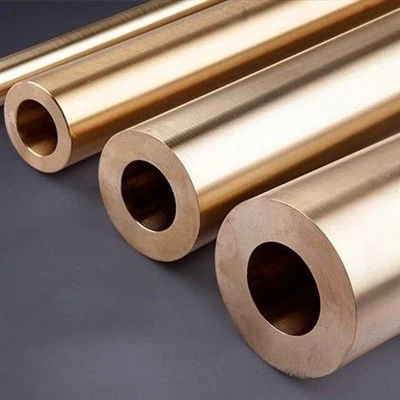

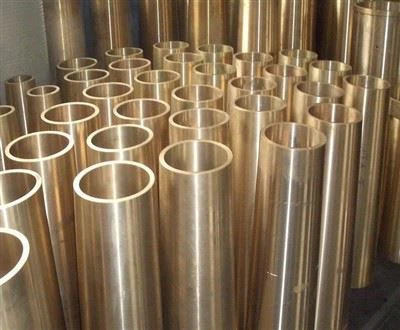

Aluminum Bronze Pipe

The Nomal Aluminum Bronze Pipe we can supply as below
QAl9-2,QAl9-4,QAl10-3-1.5,QAl10-4-4,QAl10-5-5,QAl11-6-6,QAl9-5-5-1
Processing Method：Casting,extrusion,stretching,forging, heat treatment and machining
Temper：R、Y、Casting、Forging
Size:OD 2-500mm, Thickness0.5-300mm, Length as customer requirements
Leadtime:10-30days
MOQ:10kg

Send Inquiry

Description

Product Description

Aluminum bronze pipes have high strength, good wear resistance, corrosion resistance, good processing performance, as well as excellent thermal conductivity and stable mechanical properties. They are mainly used in the processing and manufacturing of various components that require high-strength mechanical performance, and are widely used in industries such as shipbuilding, aerospace, mechanical manufacturing, and military equipment.

Chemical Composition

Grade	Cu	Al	Fe	Ni	Mn	P	Zn
QAl9-2	REM	8.0~10.0%	≤0.50%	-	1.5~2.5%	≤0.01%	≤1.0%
QAl9-4	REM	8.0~10.0%	2.0~4.0%	-	≤0.5%	≤0.01%	≤1.0%
QAl10-3-1.5	REM	8.5~10.0%	2.0~4.0%	-	1.0~2.0%	≤0.01%	≤0.5%
QAl10-4-4	REM	9.5~11.0%	3.5~5.0%	3.5~5.5%	≤0.3%	≤0.01%	≤0.5%
QAl10-5-5	REM	8.0~11.0%	4.0~6.0%	4.0~6.0%	0.5~2.5%	-	≤0.5%
QAl11-6-6	REM	10.0~11.5%	5.0~6.5%	5.0~6.5%	≤0.5%	≤0.1%	≤0.6%
QAl9-5-5-1	REM	8.0~10.0%	0.5~1.5%	4.0~6.0%	0.5~1.5%	≤0.01%	≤0.3%

Reference Standard

GB/T 5231-20112;GB/T 4423-2007;GB/T 1527-2017;YS/T 649-2018;YST 662-2007,

GB/T 2040-2017;ASTM series;DIN series.

Product advantages

The Aluminum bronze pipes produced by our company have a high reputation and strong competitiveness in the market, excellent performance, and all indicators are superior to national and industry standards. The product composition is uniform, without dust inclusion, cracking, or internal damage, with high yield and short production cycle.
